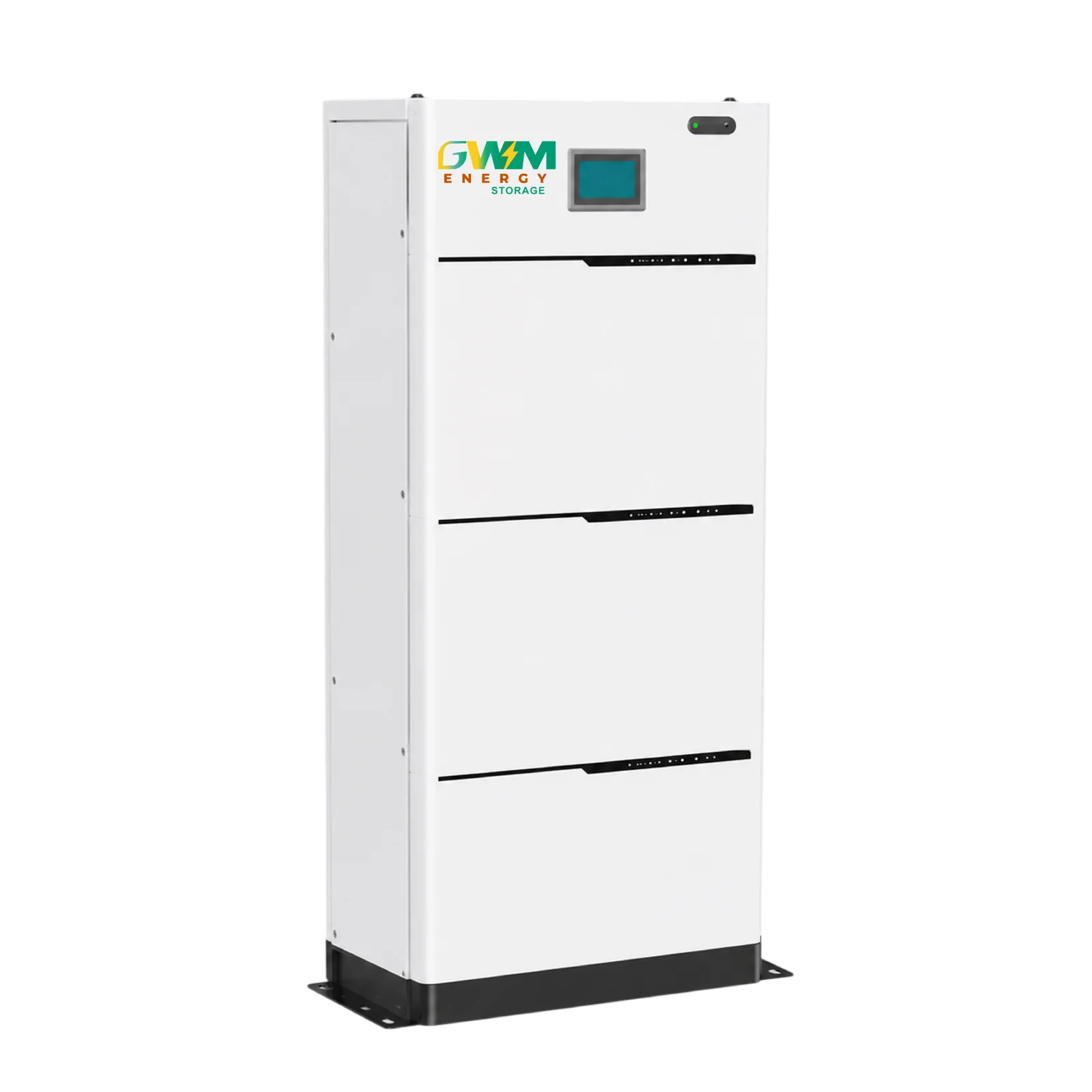

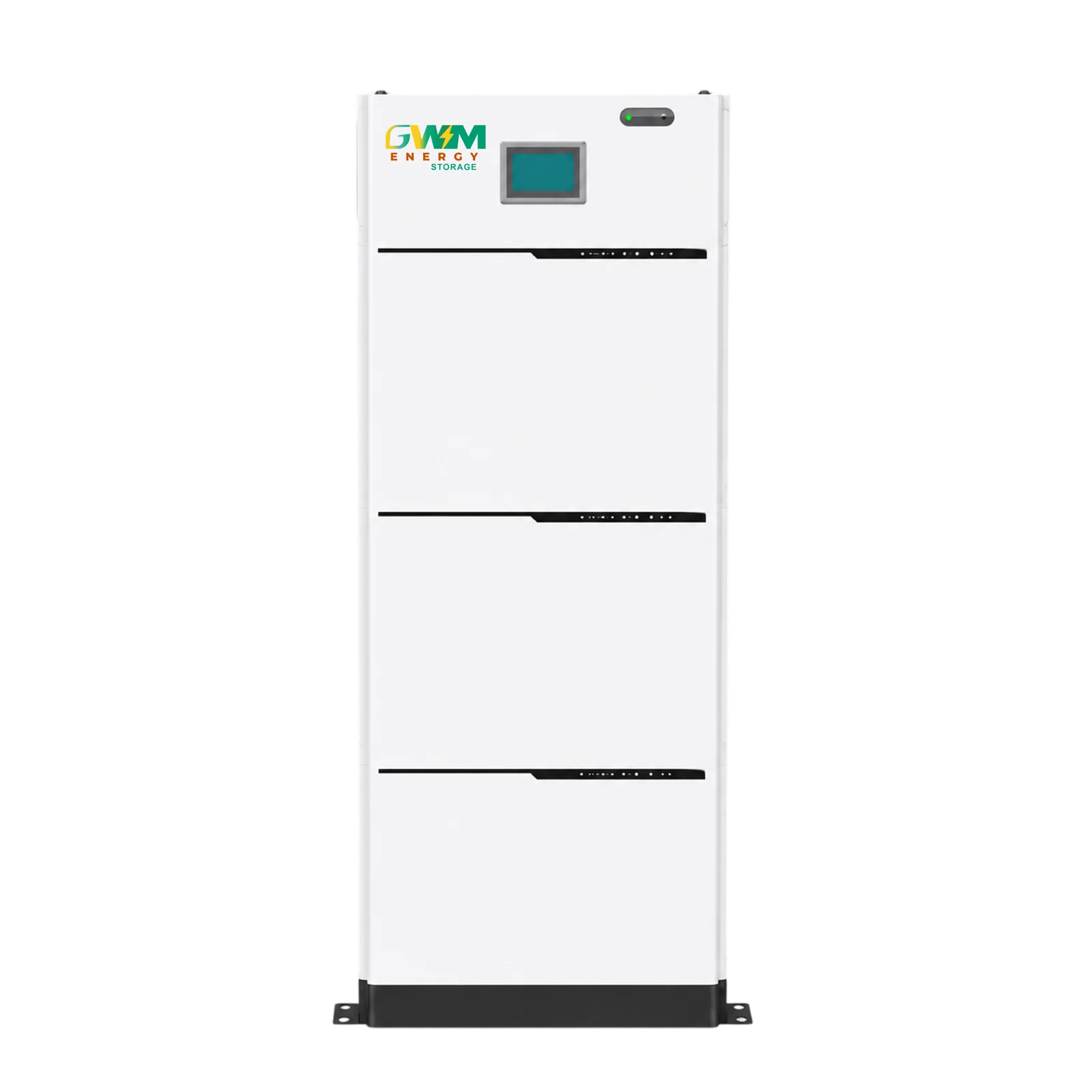

Hero series of Low-voltage stacking products uses 5.12kWh lithium iron phosphate batteries as a single module, 5kW output power and support 4 clusters in parallel(5kWh~15kWh capacity). It combines with home microgrid, touch LCD display, and support screen selection protocol. Its fashionable appearance design makes it more suitable for home energy storage application scenarios.
| Specification | 2-Module | 3-Module |
| Model | HERO-LVA512200 | HERO-LVA512300 |
| Number of Battery Parallel | 2 | 3 |
| Rated Energy | 10.24kWh | 15.36kWh |
| Dimension (W×H×T) | 600 × 1125 × 160mm | 600 × 1575 × 160mm |
| Rated Voltage | 51.2V | 51.2V |
| Rated Capacity | 200Ah | 300Ah |
| Rated Charging & Discharge Multiplied | 0.5C | 0.5C |
| Depth of Discharge (DoD) | 90% | 90% |
| Working Voltage | 43.2V – 58.4V | 43.2V – 58.4V |
| Output Power | 5KW | 5KW |
| Communication Interface | CAN / RS485 | CAN / RS485 |
| Cycles | 4000 @ 25℃ / 0.5C / 80% DOD | 4000 @ 25℃ / 0.5C / 80% DOD |
| Protection Level | IP65 | IP65 |
| Cooling Method | Natural Cooling | Natural Cooling |
| Run Temperature Range | -20°C ~ 55°C | -20°C ~ 55°C |
| Storage Temperature | -15°C ~ 40°C | -15°C ~ 40°C |
| Relative Humidity | 0-90% RH | 0-90% RH |
| Certification Standards | IEC 62619 / CE / UN38.3 / MSDS | IEC 62619 / CE / UN38.3 / MSDS |
