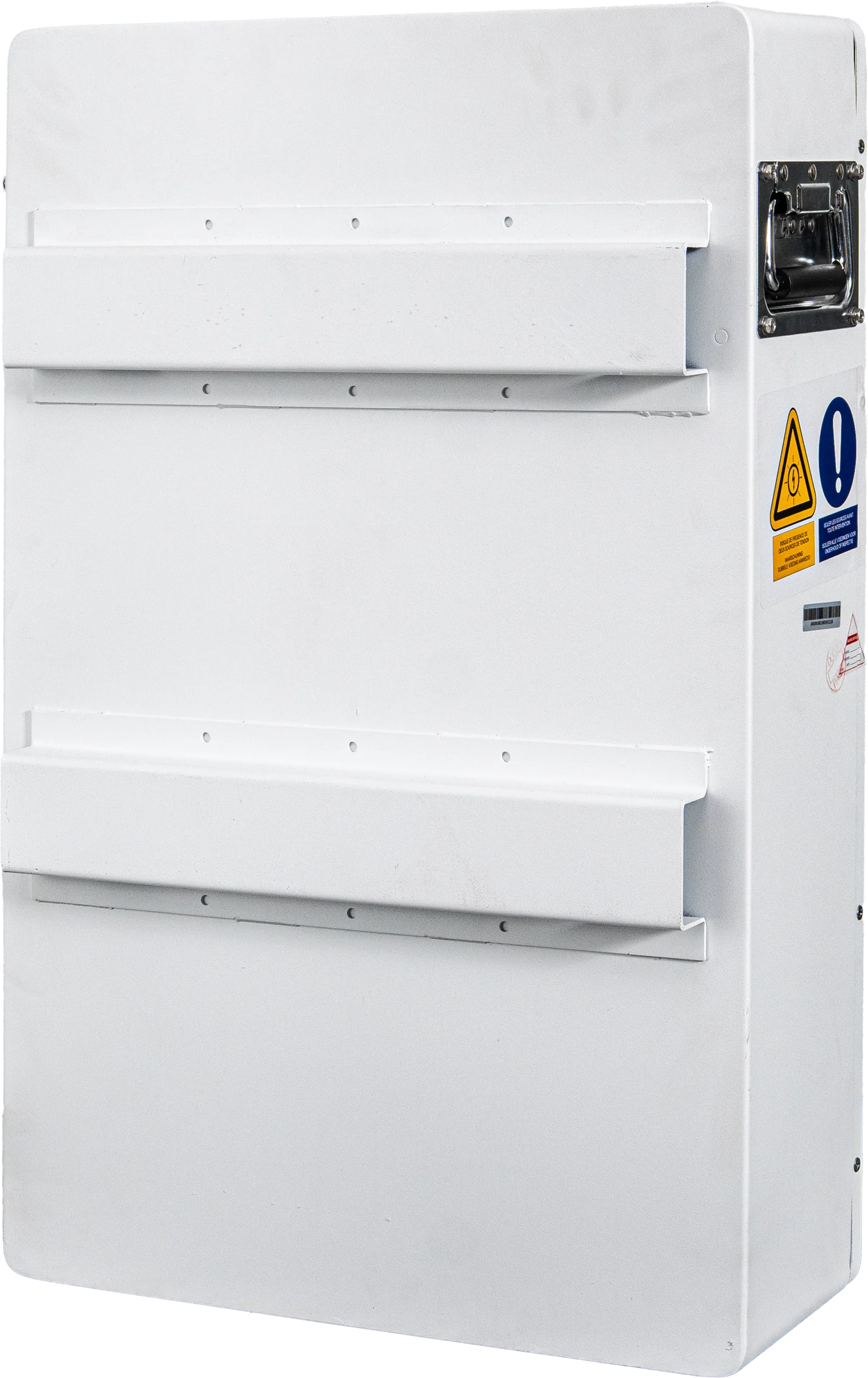

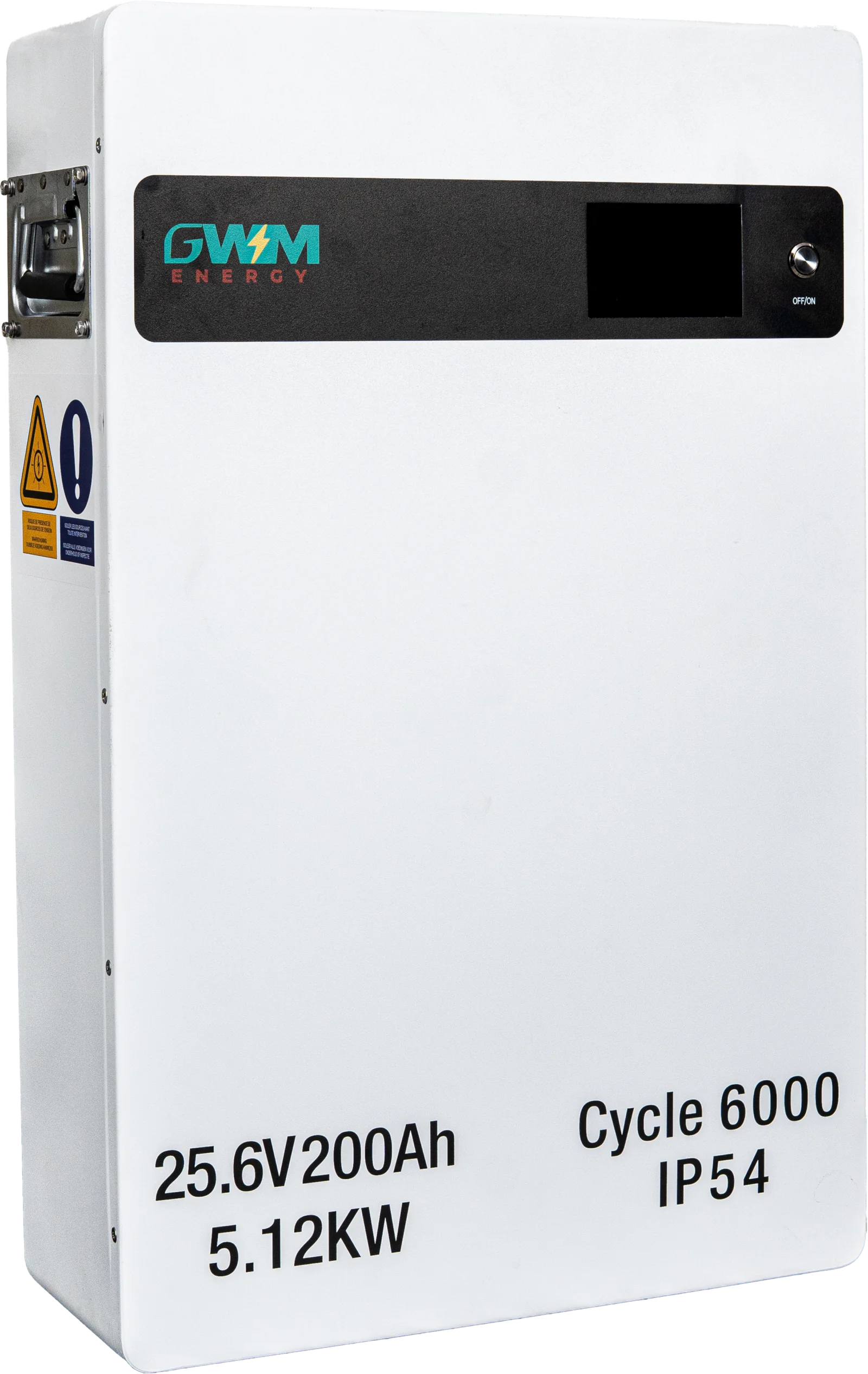

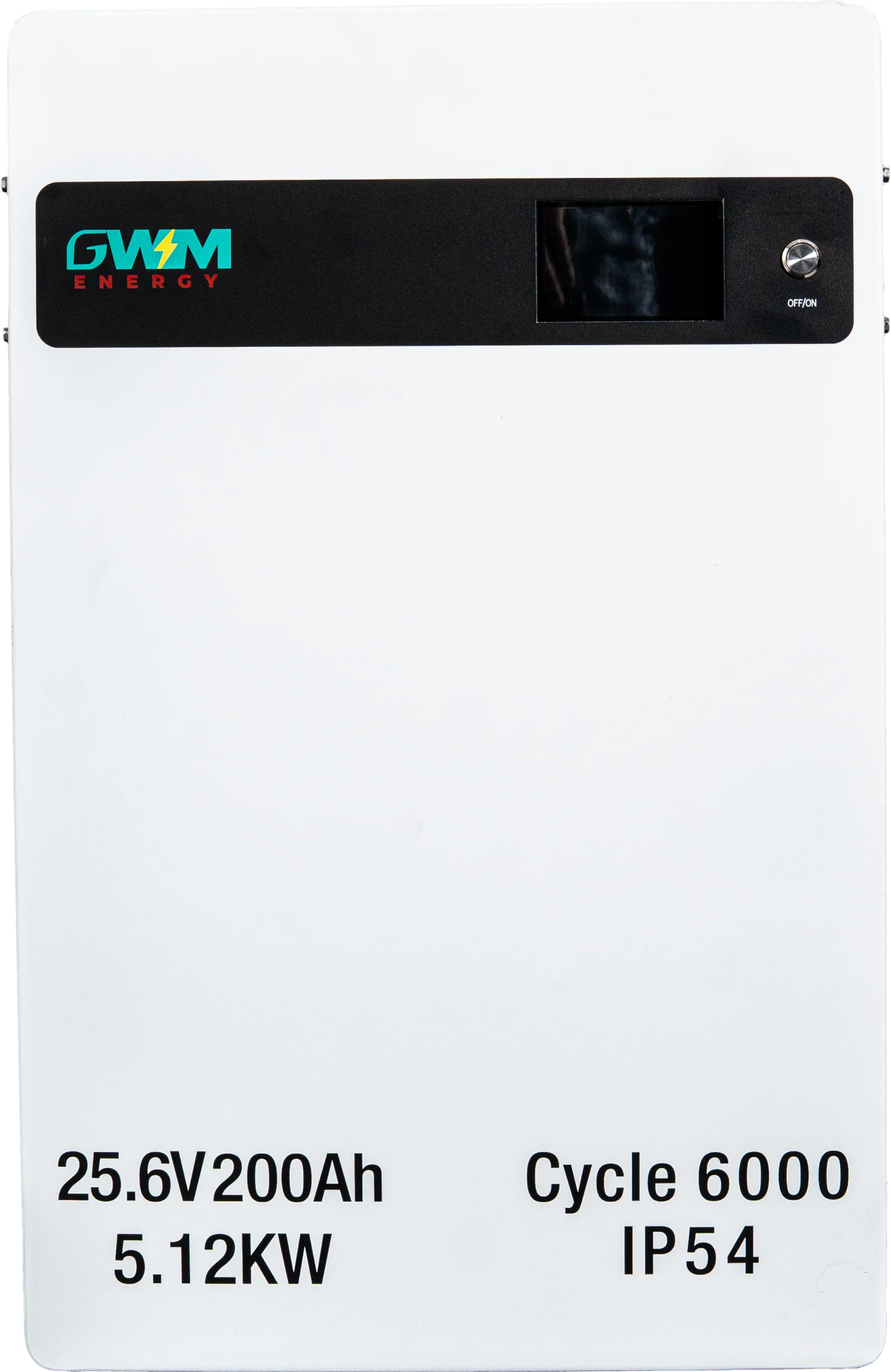

GWM LBP-W800P1 is a high-performance 25.6V 200Ah (5.12 kWh) LiFePO₄ lithium battery designed to provide reliable and efficient energy storage for homes and small businesses. Built with advanced lithium iron phosphate (LiFePO₄) technology, it delivers safe, stable, and long-lasting power for daily energy consumption, solar energy storage, and backup power applications. The system supports parallel expansion of up to 4 battery units, allowing you to easily scale your energy storage capacity as your needs grow. Equipped with an intelligent Battery Management System (BMS), it provides comprehensive protection against overcharging, over-discharging, overheating, and short circuits for enhanced safety and reliability. With an impressive 6,000+ life cycles and a 7-year replacement warranty, the GWM LBP-W800P1 offers exceptional durability, high efficiency, and dependable performance you can trust for years to come.

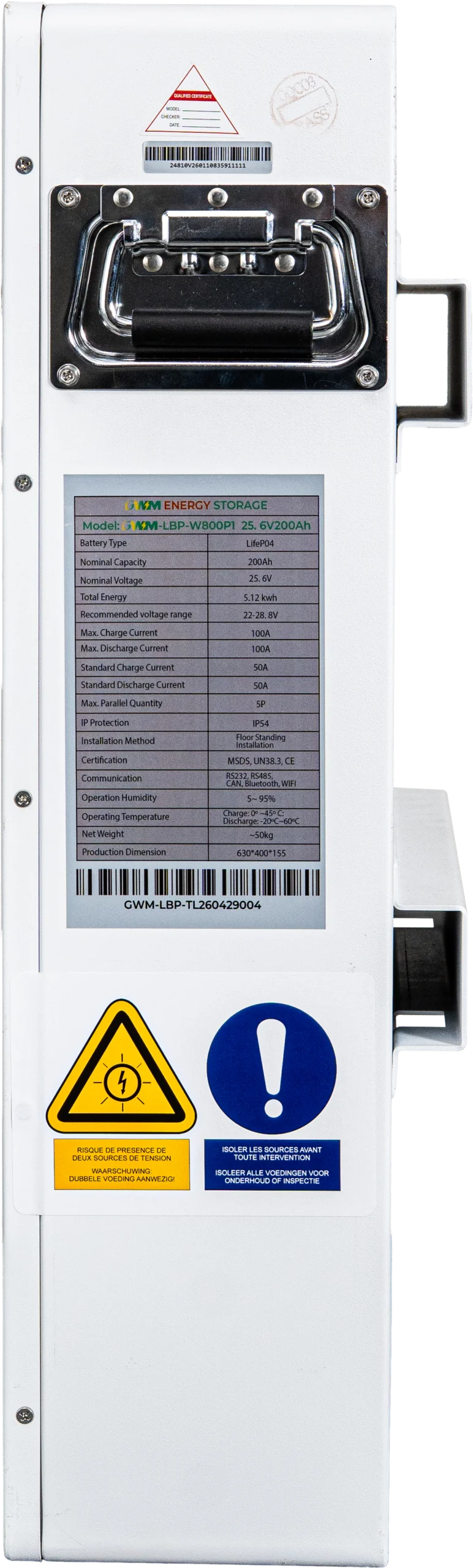

| Project | Product Specification |
| Battery Type | LiFePO4 |
| Battery Module Energy (kWh) | 5.12 |
| Battery Module Capacity (Ah) | 200 |
| Battery Module Voltage (V) | 25.6 |
| Charge Current | 100A |
| Charge Power | 2.56 kW |
| Discharge Current | 200A |
| Discharge Power | 5.12 kW |
| Short Circuit Current | 350A |
| Maximum Discharge Rating | 1C |
| Net Weight | 50kg |
| Dimension (W/D/H) | 630/400/155 |
| Depth of Discharge (DoD) | 95% |

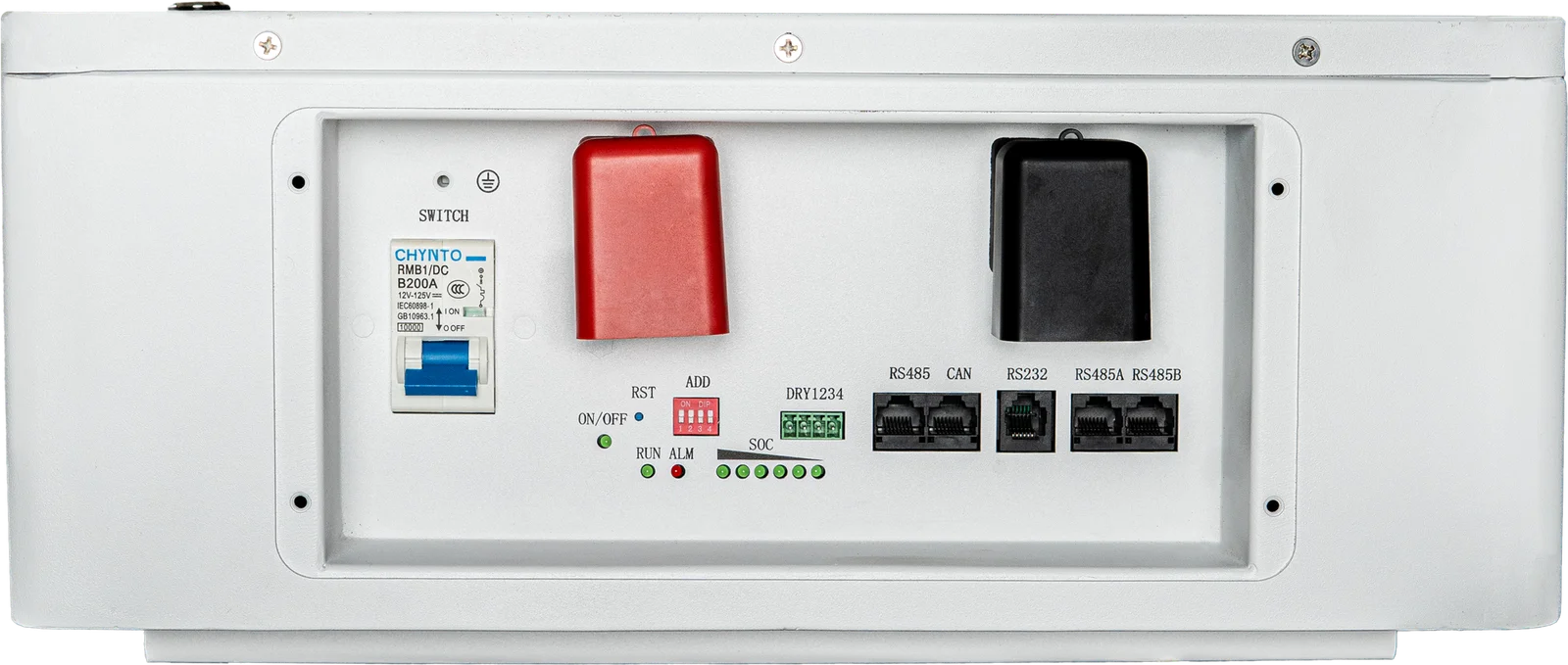

| Communication | RS232/CAN/RS485 |

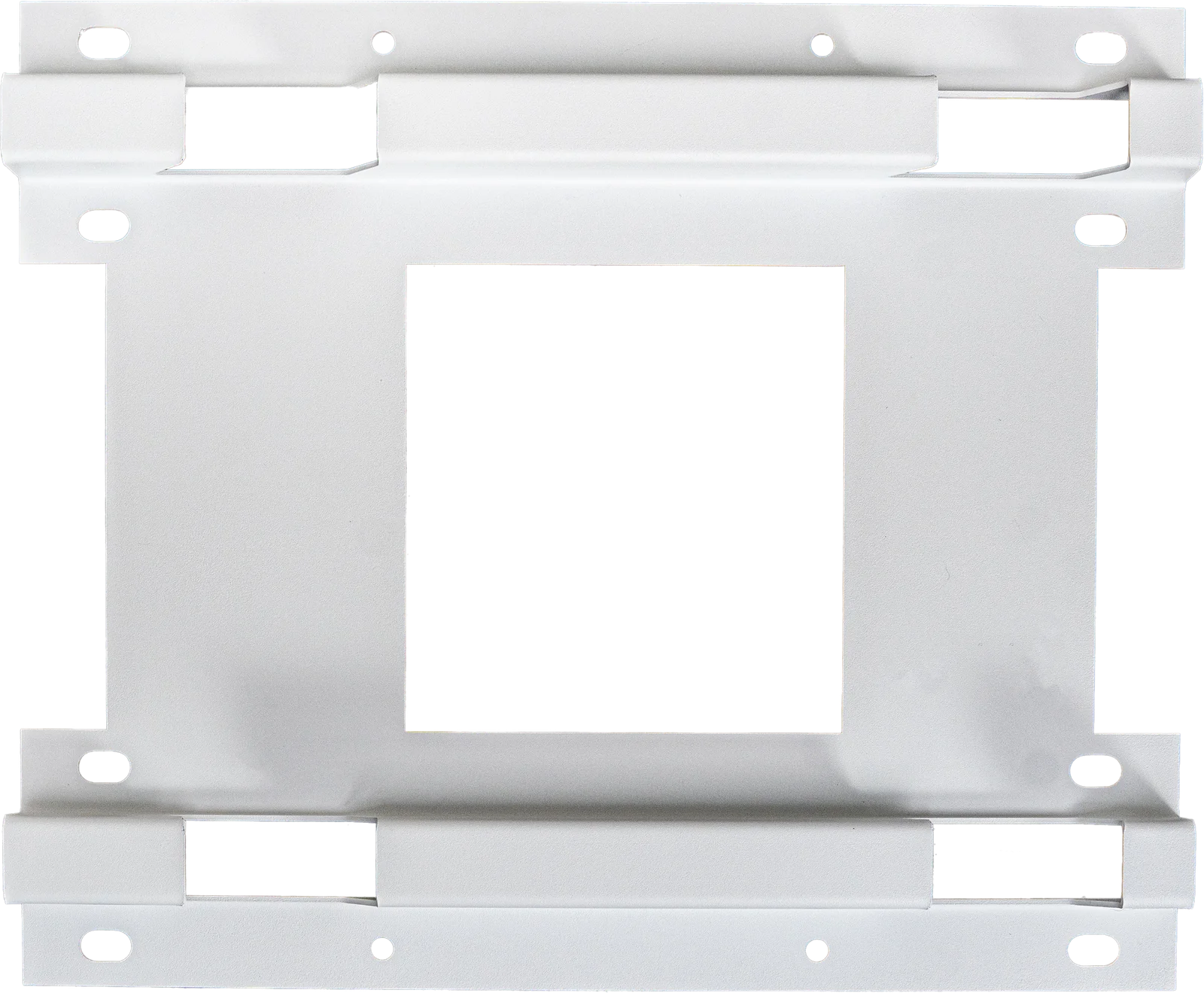

| Installation Method | Wall Mounted |
| Operating Charge Temperature | 0°–55°C |
| Operating Discharge Temperature | -20°C–55°C |
| Protection Level | IP54 |
| Cycle Life | 6000+ |
| Operation Humidity | 5~95 |
| Expansion | Up to 5 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification | UN38.3.1/CE/MSDS |
| Compatible Inverters | For all Branded Inverters IP21-66 |
