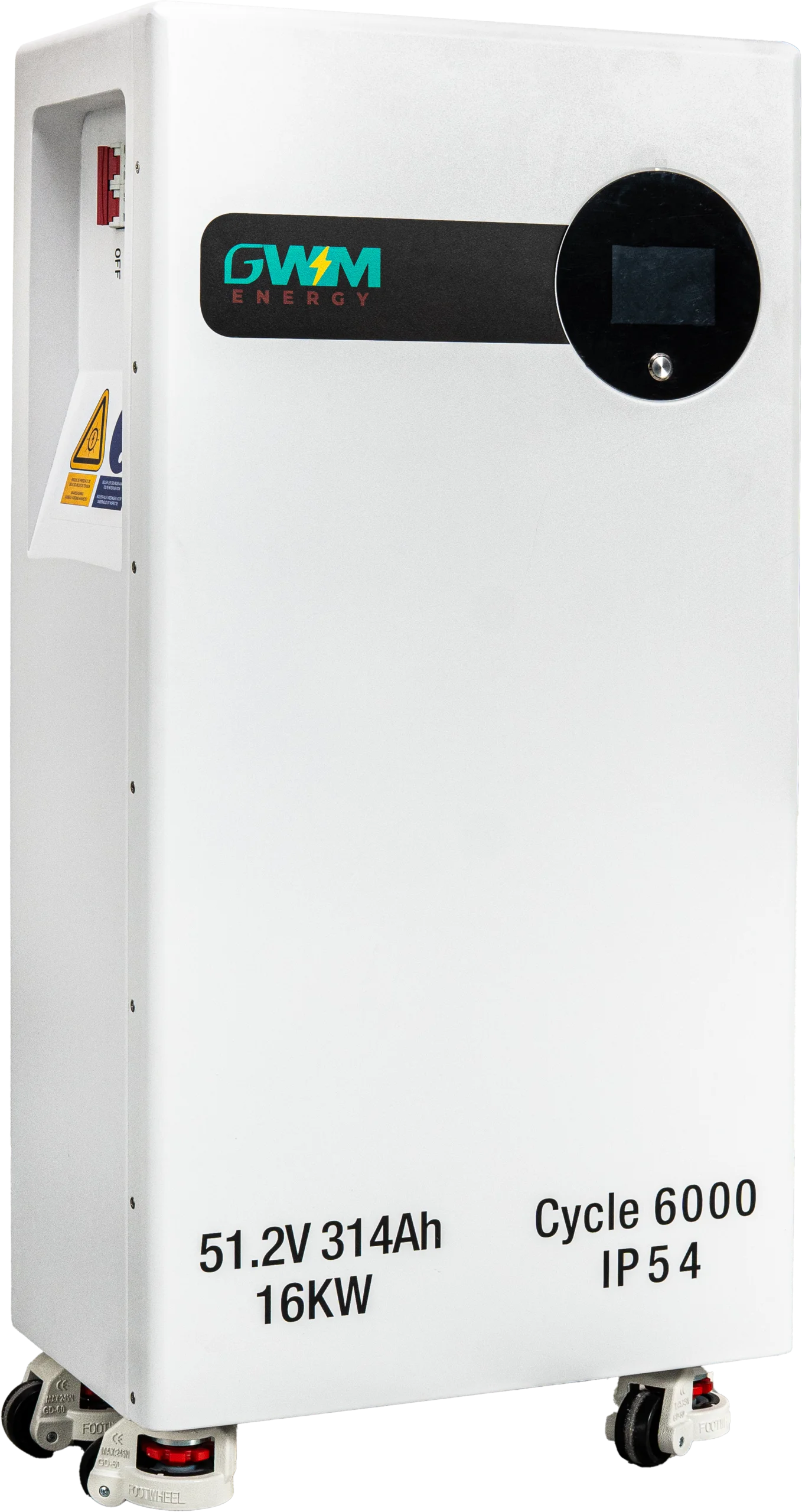

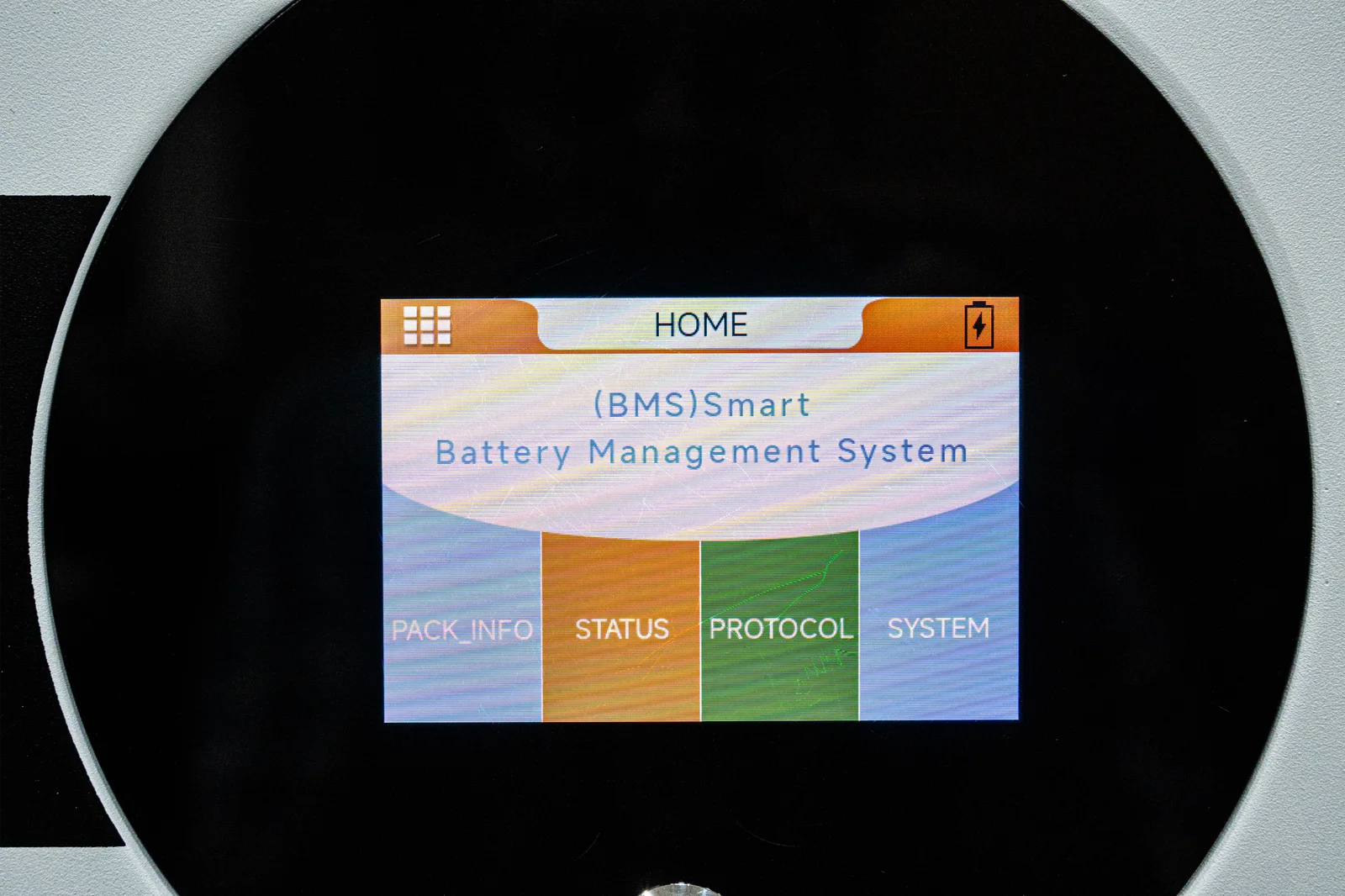

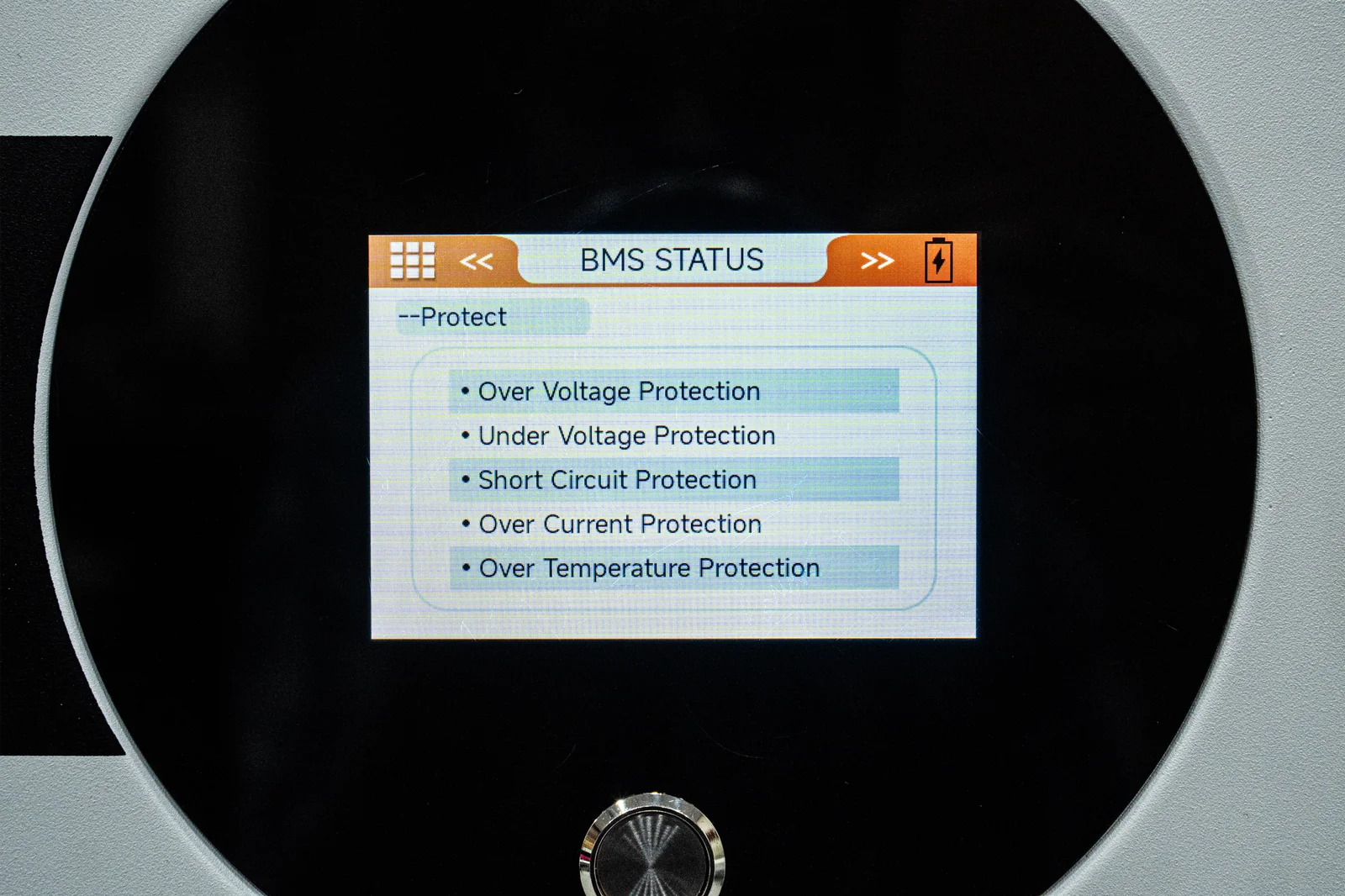

The GWM LBP-W1400P1 is a high-performance 51.2V 314Ah (16.08kWh) LiFePO₄ lithium battery designed to deliver safe, reliable, and efficient energy storage for residential and small commercial applications. Built with advanced Lithium Iron Phosphate (LiFePO₄) technology, it provides exceptional safety, long service life, and stable power output for solar energy storage, backup power systems, and daily energy requirements. With support for up to 10 battery units in parallel, the system allows flexible capacity expansion as your energy needs grow. Equipped with an intelligent Battery Management System (BMS), the LBP-W1400P1 ensures complete protection against overcharging, over-discharging, overheating, and short circuits. Delivering 10,000+ life cycles, advanced monitoring options, and a 7-year replacement warranty, GWM LBP-W1400P1 provides dependable energy performance built for years of operation.
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO₄ |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 16.08kWh |
| Usable Capacity | 15.8kWh |
| Depth of Discharge (DOD) | 95% |
| Dimensions (L×W×H) | 860 × 450 × 200 mm |
| Weight | 120 kg |
| Recommended Voltage Range | 44.57V ~ 57.6V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Charge/Discharge Current | 300A @ 15 sec |
| Communication Interface | RS232 / CAN / RS485 / Bluetooth |
| Maximum Parallel Units | 10 Units |
| Maximum Strings | 4 Strings |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Cooling System | Natural Cooling |
| Protection Class | Class I |
| IP Rating | IP54 |
| Anti-Corrosion Grade | C5-M |
| Humidity Range | 5% ~ 95% |
| Certification | UN38.3 / CE / MSDS |
| Cycle Life | >10,000 Cycles |
| Monitoring Interface | Display Screen + Bluetooth + Wi-Fi External Port |
